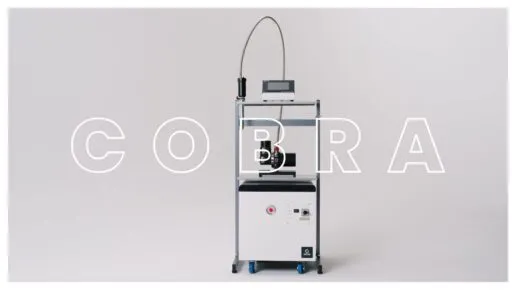

Cobra

Benefits

Temperature Range: 80-400 K or 80-500 K (Standard or Plus)
Cryogen: None (Mechanically Cooled)
Stability: +/- 0.1 K
Fast Cool Down: ~60 minutes (~50 minutes to 100K)
Run-Time: Endless

Typical Applications

High-throughput screenings in drug discovery or materials science
High-precision solution and refinement of crystal structures
Protein crystallography
Investigation of phase transitions
Stability and morphology of drug crystals

Scroll the table

Refrigerator & Gas Head^*
Dimensions & Weight	28 x 20 x 28 mm, 15 kg
N₂ Intake	5 or 10 l/min

K450 Helium Compressor
Weights & Dimensions	64 x 61 x 54 cm, 100 kg
Supply Fuse Rating	20 A (Starting Current: 65 A)
Cooling Requirements	3kW Water Chiller^† or plumbed supply Flow rate 5l/min at 18°C

N₂ Supply (Required)
Purity	>97.5%
Pressure	1 – 1.4 bar^‡
Flow	~25 l/minute

Scroll the table

^* These items are permanently joined and form an integrated assembly

^† Water Chiller not provided

^‡ Regulator Kit available

See more details on Bioz

Powered by Bioz

Accessories

The base Cobra system contains the main refrigeration unit with attached a gas delivery head, and a helium compressor. Alongside this base system, users have the option to enhance their setup with additional accessories.

NitroFlow Nitrogen Gas Generator

For laboratories that do not have an in-house supply of nitrogen, we supply a bespoke variant on the Parker Hannifin NitroFlow Nitrogen Gas Generator, which extracts pure nitrogen from the air. The generator has 2 outlet ports, providing gas at 1.2 bar for both inner and outer gas streams of the Cobra.

Cobra Table Stand

This table stand has been specifically designed to house the various components of the Cobra system, providing an organised space to manage cables and wires.

Varibeam

The Varibeam stand provides a sturdy yet lightweight support for the coldhead, designed for compatible with a range diffractometer configurations. It facilitates easy and precise adjustment of orientation and positioning of the nozzle to ensures accurate alignment of the gas stream onto the sample.

Customisation

These options are tailored to meet the specific requirements of our customers. If you have a customisation in mind for your Cobra that is not covered in the options listed, we’d love to know.

Plus

Increase the upper temperature range to 500 K

Compact

A variation on the Plus which features a shortened nozzle. This design allows compatibility with powder diffractometers, facilitating high-resolution studies of both organic and inorganic compounds.
